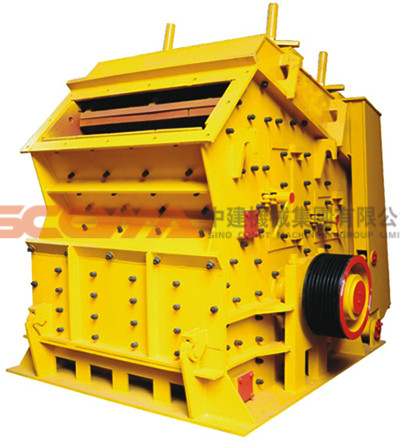

Impact crusher is effective energy saving crushing equipment. It can fully utilize the power of rotor, hammer hits the material at high speed, and toss the material to impact the Impact plate, and at the same time impacting between the materials, so this crusher can break the material high rate. Widely used by construction, chemical industry, coal etc. In industry sector, it is used for crushing limestone, dolomite, shale, sandstone, coal, asbestos, etc.
Advantages&Characteristics
Hard rock breaking
No key connection
Unique back fossils
High wear-resisting plate hammer
Hydraulic or manual
Main technical parameters
Model | Feeding port size (mm×mm) | Maximum feed size (mm) | Ability to handle(t/h) | Electric Power(kw) | Weight | Shape dimension (mm) |
PF-1007 | 820×700 | 300 | 24-45 | 55 | 9.5 | 2400×1558×2660 |
PF-1010 | 1170×720 | 350 | 50-80 | 75 | 10 | 2532×1985×2196 |
PF-1210 | 1090×465 | 350 | 80-130 | 110 | 14 | 2645×2050×2710 |
PF-1214 | 1440×465 | 350 | 100-160 | 132 | 16.8 | 2645×2410×2710 |
PF-1315 | 1530×990 | 350 | 140-200 | 220 | 21 | 3160×2730×2615 |
PF-1316 | 1640×990 | 350 | 150-220 | 220 | 21.8 | 3160×2840×2615 |
PF-1515 | 1530×748 | 350 | 150-280 | 280 | 28 | 3590×2830×3270 |
PF-1520 | 2280×748 | 350 | 300-550 | 440 | 36 | 3590×3770×3270 |

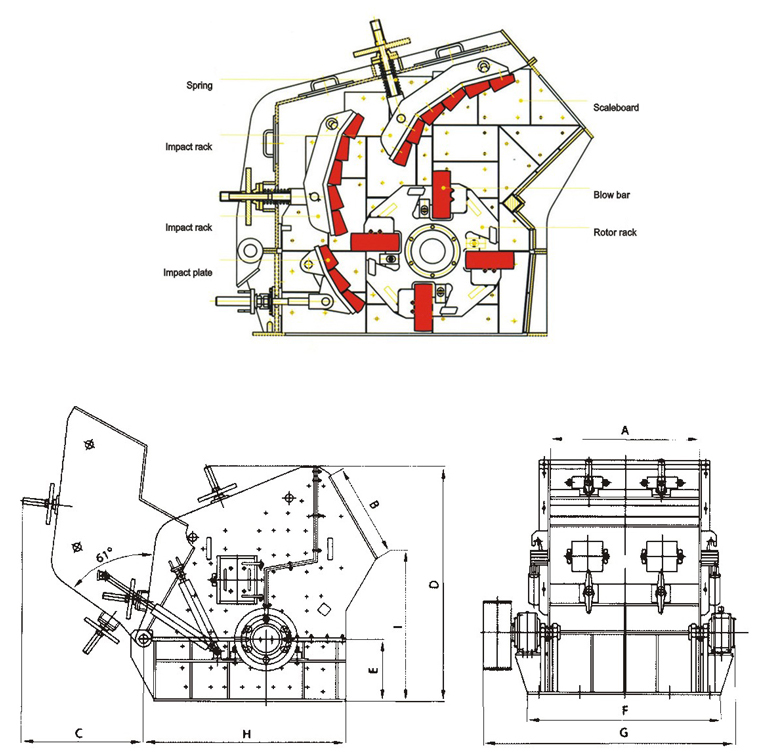

Overall dimensions
Model | (mm) | ||||||||
A | B | C | D | E | F | G | H | I | |
PF-1007 | 820 | 700 | 1000 | 2660 | 600 | 1260 | 1475 | 1850 | 1500 |
PF-1010 | 1170 | 720 | 1100 | 2500 | 550 | 1600 | 2000 | 1740 | 1500 |
PF-1210 | 1090 | 465 | 1550 | 2710 | 600 | 1776 | 2050 | 2115 | 1735 |
PF-1214 | 1440 | 465 | 1550 | 2710 | 600 | 2126 | 2410 | 2115 | 1735 |
PF-1315 | 1530 | 990 | 1425 | 2615 | 685 | 2242 | 2730 | 2360 | 1655 |
PF-1316 | 1640 | 990 | 1425 | 2615 | 685 | 2470 | 2840 | 2360 | 1655 |
PF-1515 | 1530 | 748 | 1200 | 2150 | 785 | 2240 | 2830 | 2730 | 2150 |
PF-1520 | 2280 | 748 | 1200 | 2150 | 785 | 2990 | 3770 | 2730 | 2150 |
