S Series Cone Crusher

S Series Cone Crusher is the most using in mineral, quarry around the world nowadays; both its standard or short head type can be full-load feeding. Its multi-cylinder series use hydraulic technology, adjust and protect the outlet and crave. Characteristic, safety, reliable, speedy, easy operation, easy maintenance and energy saving.

Advantages&Characteristics

1.Breakage force

2.High yield

3.Stone form good

4.Maintenance costs low

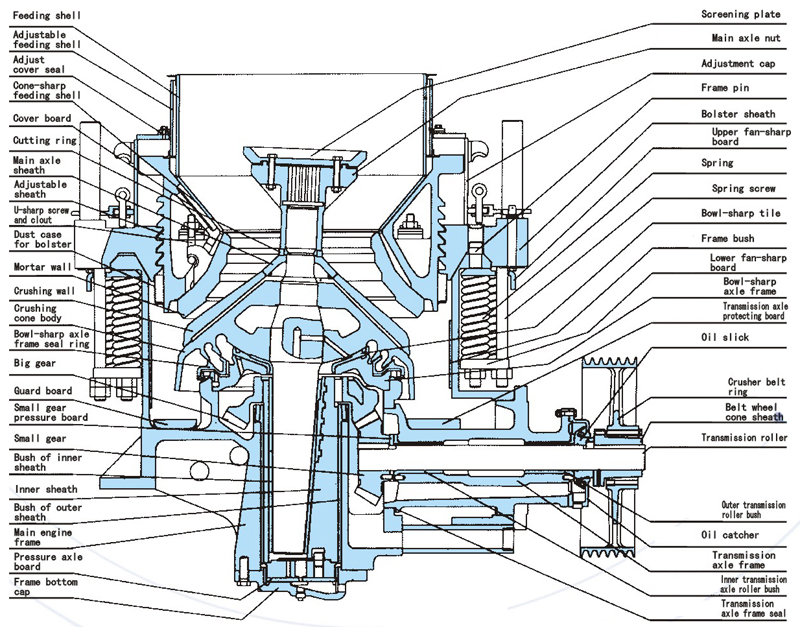

Structural Drawing

Standard cone machine open process performance t/h

Model	Chamber	A(mm) Recommend Mix Minimum Gape	Corresponding Recommended Minimum Gape Feeding Port		The Corresponding Row Ore Production Capacity													Electric Power (kw)
Model	Chamber	A(mm) Recommend Mix Minimum Gape	B(mm)	B(mm)	9	13	16	19	22	25	31	38	51	64	76	89	102	Electric Power (kw)
S75B	Small size	9	83	102	45	59	72	81	91									75
	Large size	18	159	175		59	72	91	109	118	136	163
	X-large size	25	163	178						128	147	175	196
S155B	Small size	13	109	137		109	127	145	154	163	181							185
	Large size	16	188	210			132	159	172	200	227	253	309
	X-large size	19	216	241				172	195	218	249	295	378
	Middle size	25	238	259						236	276	324	398	455
S220B	Large size	16	188	210				198	220	242								220
S220B	X-large size	19	239	260			170	220	242	286	320	363	464	495				220
S240B	Small size	15	188	209			181	204	227	258	295	327						240
	Large size	22	213	241					258	290	336	381	437
	X-large size	25	241	269						354	417	454	610
	Middle size	38	331	368								538	630	743
S400B	Small size	19	253	278				381	408	499	617	726	852	1036				400
	Large size	25	303	334						608	726	807	998	1128	1296
	X-large size	31	334	369							789	844	1088	1257	1386	1450
	Middle size	38	425	460								880	1179	1361	1473	1531	1643

Short head type cone machine open process performance t/h

Model	Chamber	A(mm) Recommend Mix Minimum Gape	Corresponding Recommended Minimum Gape Feeding Port		The Corresponding Row Ore Production Capacity											Electric Power (kw)
Model	Chamber	A(mm) Recommend Mix Minimum Gape	B(mm)	B(mm)	3	5	6	10	13	16	19	25	29	32	38	Electric Power (kw)
S75D	Small size	3	13	41	27	41	54	68	90							75
	Large size	3	33	60	27	41	54	68	90	100
	X-large size	6	51	76			59	73	95	113	127
S155D	Small size	3	29	64	36	59	82	104	136	163						155
	Large size	6	54	89			82	104	136	163
	X-large size	8	70	105				109	159	181	200	227
	Middle size	16	98	133							209	236
S220D	Small size	8	41	76				134	162	203	220					220
S220D	Large size	13	80	115					165	209	231	253				220
S240D	Small size	5	35	70		90	136	163	209							240
	Large size	6	54	89			136	163	209	253	281
	X-large size	10	98	133				190	253	281	308	336
	Middle size	13	117	133					253	281	308	336
S400D	Small size	5	51	105		190	270	345	360	408	475	512				400
	Large size	10	95	133				354	408	454	508	560	613
	X-large size	13	127	178					454	480	540	599	661	685
	Middle size	16	152	203						508	590	653	680	693	720

Overall dimension (mm)

ndard size and short head size	Crusher specification		S75	S155	S220	S240	S400
	From the frame normal to the center of crusher	A	840	1020	1319	1450	1655
	From the transmission normal to the center of crusher	B	890	1120	1370	1400	1780
	Demanded space for dismantle axle frame	C	2515	2900	3000	3510	4320
	From the face to the center of crusher	D	1860	2050	1760	2465	2975
	From the rock bottom to the cardinal plane	E	460	640	490	815	1050
	Maximum diameter of supporting sleeve	F	2010	2500	2384	3280	4270
	Diameter of bottom	G	560	690	685	815	915
	Demanded height for dismantle crusher cone	H	2800	3530	3800	4270	5465
	Anchor bolts size	J	660	883	975	1130	1245
	From the top of feeding shell to cardinal plane	K	1730	2300	2430	2690	3300
	From the top of supporting sleeve to the cardinal plane	L	1070	1320	1320	1550	1960
	Demanded height for dismantle whole plant	M	2390	3320	3500	3810	4780

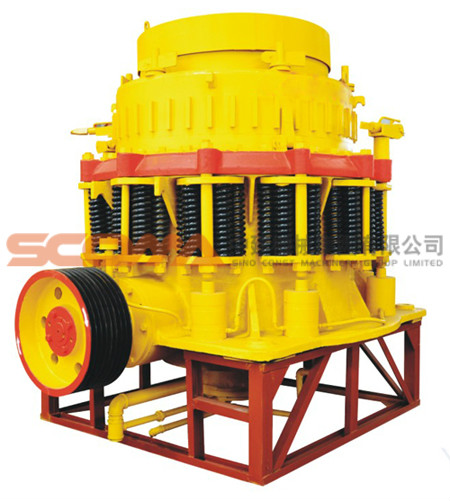

Machine appearance

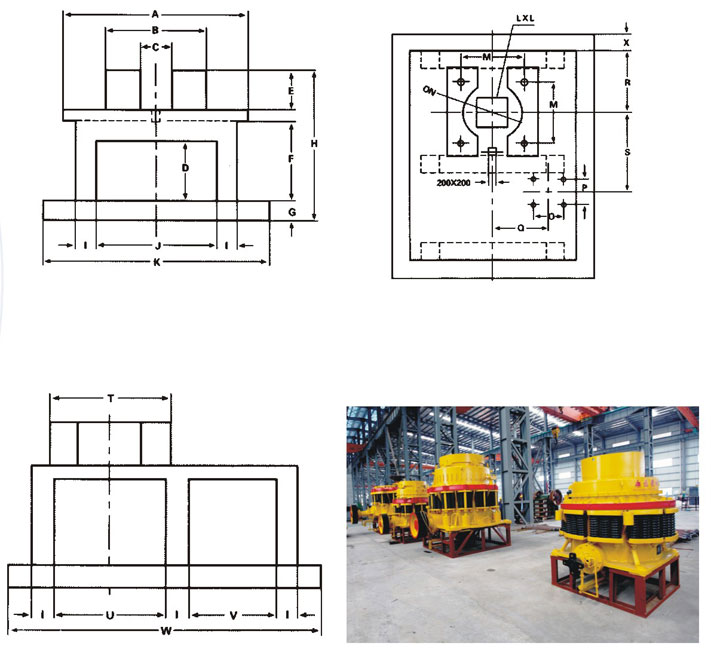

Basic dimensions and foundation drawing

Model	A	B	C	D	E	F	G	H	I	J	K	L	M	N	O	P	Q	R	S	T	U	V	W	X
S75	3800	2140	712	1500	500	2000	500	3700	500	2200	4800	700	1320	1230	638	586	1252	1570	1793	2140	2000	1800	6300	500
S155	4600	2520	800	1500	700	2000	600	3800	500	3000	5600	900	1766	1625	840	730	1565	1750	2236	2520	2500	2000	7000	500
S220	4600	2800	920	1700	550	2200	600	3600	600	2800	5600	1100	1950	1930	700	630	1863	1900	1085	2800	2500	2000	7300	500
S240	5200	3500	920	1800	800	2600	600	4400	700	3400	6200	1400	2260	2190	920	840	1791	1950	3016	2900	2400	2400	7900
