LMP single cylinder hydraulic cone crusher

Product Size

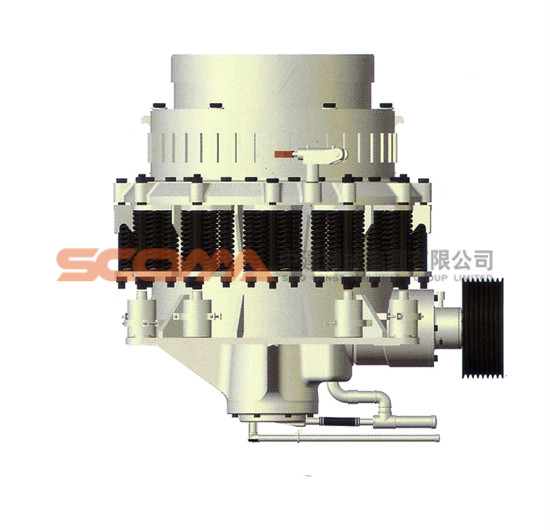

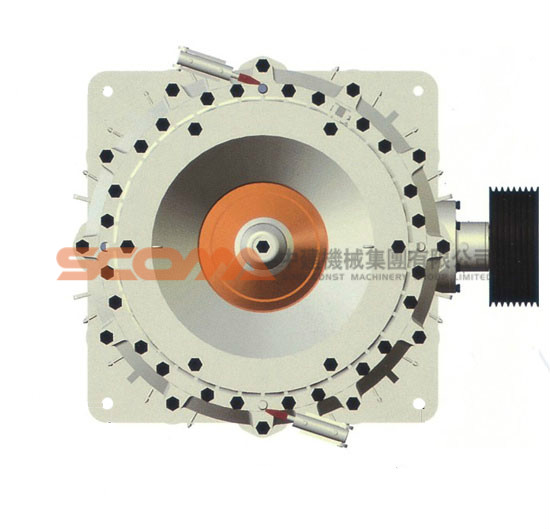

LMC Series Cone Crusher

Dimension

Main Technical Parameters

Standard	Chamber	Max feed size (mm)	Min discharge opening (mm)	Power(kw)	Capacity(t/h) Close discharge size(mm)										Weight
Standard	Chamber	Max feed size (mm)	Min discharge opening (mm)	Power(kw)	6	10	13	16	19	22	25	38	51	64	(t)
LMC600	C	95	10	37-45		20	25	30	35	45	50	76			5.3
LMC600	M	72	6	37-45	18	20	25	30	35	40	45	60			5.3
LMC1000	C	160	13	90-110			80	100	135	150	175	235			10.8
	M	115	10	90-110	52	65	75	90	120	135	150				10.8
	F	80	8	90-110	50	62	72	78	115						10.51
	EF	50	6	90-110		55	65	70	102						10.51
LMC1160	C	180	13	110-132			115	135	150	180	200	260			15.5
	M	130	10	110-132	60	100	110	120	135	165	175				15.5
	F	90	10	110-132		80	105	110	140						15.5
	EF	60	6	110-132		74	105	110	130						15.5
LMC1300	C	200	16	132-160				150	180	200	230	310	390		22.3
	M	150	13	132-160			115	140	160	190	210				22.3
	F	102	10	132-160		90	115	145	160						22.3
	EF	70	8	132-160		88	110	135	155						22.3
LMC1380	C	215	19	185-220					200	220	260	350	440		26.3
	M	160	16	185-200				155	180	200	220				26.3
	F	115	13	185-200			150	190	210	230					26.3
	EF	76	8	185-200		122	148	185	200						26.3
LMC1500	C	235	22	185-200						265	310	420	525	580	37.5
	M	175	19	185-200					215	240	265	320			37.5
	F	130	13	185-220			180	210	235	255	275				37.5
	EF	90	10	185-220		148	178	200	220						37.5
LMC1680	C	267	22	250-300						330	390	525	655	725	44.3
	M	203	16	250-300				230	270	300	330				44.3
	F	140	13	250-300		185	225	265	340						44.3
	EF	95	10	250-300		180	220	260	335						44.3
