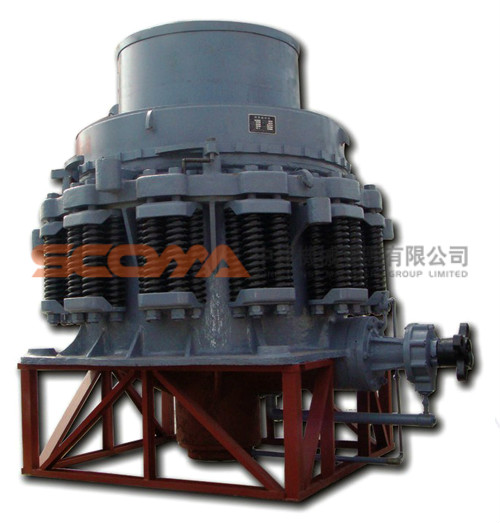

Refer to the advanced crushing technology in the world. We produce this series cone crusher high-tech advance. It widely used in smelting, construction, hydropower, communication, chemical industry area. It is suitable for crushing high hardness, medium hardness mine and stones.
Advantages&Characteristics
High productivity, high quality
Less machine stop time
Easy maintenance
Unique crushing ability in primary, secondary and tertiary crushing
Main technical parameters
Model | Broken cone diameter (mm) | Maximum feed size | Dischargeport adjustment range | Ability to handle (t/h) | Electric power | Spindle swing frequency (r/min) | Weight (t) | Shape dimension (mm) |
PYB900 | 900 | 115 | 30-50 | 50-90 | 55 | 333 | 10.2 | 2692×1640×2350 |
PYZ900 | 900 | 60 | 15-30 | 20-65 | 55 | 333 | 10.2 | 2692×1640×2350 |
PYD900 | 900 | 50 | 5-15 | 15-50 | 55 | 333 | 10.3 | 2692×1640×2350 |
PYB1200 | 1200 | 145 | 30-50 | 110-168 | 110 | 300 | 22 | 2790×1878×2844 |
PYZ1200 | 1200 | 100 | 20-50 | 60-135 | 110 | 300 | 22 | 2790×1878×2844 |
PYD1200 | 1200 | 50 | 10-20 | 42-105 | 110 | 300 | 22 | 2790×1878×2844 |
PYB1750 | 1750 | 215 | 60-100 | 400-600 | 155 | 245 | 48.5 | 3910×2894×3809 |
PYZ1750 | 1750 | 185 | 30-50 | 200-350 | 155 | 245 | 48.5 | 3910×2894×3809 |
PYD1750 | 1750 | 85 | 15-30 | 120-200 | 155 | 245 | 48.5 | 3910×2894×3809 |
PYB2200 | 2200 | 300 | 100-200 | 650-1000 | 320 | 220 | 80 | 6440×2900×5057 |
PYZ2200 | 2200 | 230 | 70-150 | 480-800 | 320 | 220 | 81.4 | 6440×2900×5057 |
PYD2200 | 2200 | 100 | 35-60 | 320-450 | 320 | 220 | 81.4 | 6440×2900×5057 |
Product Size
Dimension
Model | Stroke | Max.Feeding Size(mm) | Machine Weight | Motor Power | Closed Edge Material-discharging Port(mm) output(TPH) | |||||||
8 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | |||||
LMP100 | 16 | 40-150 | 5800 | 75-90 | 40-50 | 45-55 | 60-70 | 80-90 | 85-95 | |||
20 | 40-150 | 5800 | 75-90 | 50-55 | 50-60 | 70-80 | 95-105 | |||||
25 | 40-150 | 5800 | 75-90 | 55-65 | 75-90 | 105-120 | ||||||
LMP200 | 18 | 40-210 | 9300 | 110-160 | 60-70 | 70-90 | 80-105 | 100-125 | 135-150 | 160-175 | 185-200 | |
25 | 40-210 | 9300 | 110-160 | 90-110 | 110-130 | 130-155 | 160-180 | 185-210 | ||||
32 | 40-210 | 9300 | 110-160 | 140-160 | 170-190 | 190-220 | ||||||
40 | 40-210 | 9300 | 110-160 | 200-220 | 220-240 | |||||||
LMP300 | 25 | 40-260 | 13400 | 200-250 | 100-120 | 110-130 | 135-155 | 160-180 | 190-210 | 210-235 | 240-260 | |
32 | 40-260 | 13400 | 200-250 | 110-130 | 120-150 | 165-195 | 195-225 | 230-260 | 265-295 | 300-330 | ||
40 | 40-260 | 13400 | 200-250 | 150-170 | 205-230 | 245-275 | 290-320 | 325-355 | ||||
LMP400 | 25 | 50-300 | 23500 | 220-315 | 130-150 | 155-175 | 180-200 | 210-230 | 230-255 | 260-280 | 330-350 | |
32 | 50-300 | 23500 | 220-315 | 140-170 | 185-215 | 215-245 | 250-280 | 285-315 | 320-350 | 410-430 | ||
40 | 50-300 | 23500 | 220-315 | 225-250 | 265-295 | 310-340 | 345-375 | |||||
LMP500 | 25 | 50-300 | 26500 | 250-355 | 140-160 | 160-180 | 190-210 | 240-260 | 270-290 | 310-330 | 350-370 | |
32 | 50-300 | 26500 | 250-355 | 230-250 | 270-290 | 310-330 | 340-370 | 380-410 | 430-450 | |||
50-300 | 26500 | 250-355 | 290-310 | 320-340 | 380-410 | 430-460 | 480-510 | |||||
