Semi Gantry Cranes

·         Capacity: up to 10t

·         Span Length: up to 20m

·         Duty Group: A3-A5

·         Work Environment Temperature: -25°C〜+50°C, relative humidity ≤95%

·         Applications: Indoor and outdoor

·         Advantage: cover more work area

Product Introduction

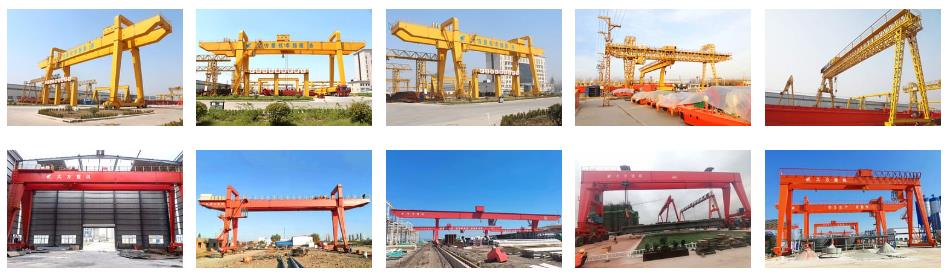

Gantry cranes or Goliath Cranes are very versatile cranes used typically for activities in steel warehouses, precast yards, construction sites, port, train station, power plant and other outdoor applications.

Include single girder gantry crane, double girder gantry crane, semi gantry crane, trussed gantry crane. Suitable for indoor and outdoor usage.

These cranes can be completely customized for SWL, span, lifting height, speeds, control method and class of duty to suit the actual applications.

Semi gantry cranes are a cost-effective alternative which just have one side support leg, the other  leg traveling on the ground rail, the other side is the end of the bridge girder same as the overhead crane end beam, it is traveling on the bracket rail. They are also an ideal supplement to overhead/bridge cranes at the workstation level.

The advantage of semi gantry crane is that it can be installed below overhead cranes that already exist. That realized the extensive cover of the floor area.

Technical Features

• Gantry cranes are more      quickly and easily for installed and disassembled, it is ideal choice for use      in a rented factory or in multiple work place

• Equipped with all the      necessary safety device： overload limit switch, travel limit switch, height limit switch,      hook safety latch

• High reliability      component: hook, winch, drum, wheel, motor etc

• Light work duty

• Suit for both outdoor and      indoor
