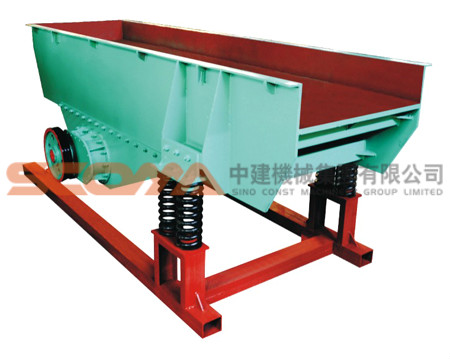

There are vibrating feeder and line feeder two types feeders in our company. Vibrating feeder used two motor vibrating the feeder to control the feeding speed, keep the whole production line working smoothly. Line feeder’s characteristics: smoothly, working reliable, long life working etc.
Feeders can feed continuously and evenly and make a first choosing. It widely used crushing and screening equipments for mining, construction, silicate, chemical industry.
Main technical parameters
Model | Manger size (mm×mm) | Maximum feeding | Ability to handle | Speed | Electric power | Weight | Shape |
GZD250×750 | 2500×750 | 300 | 50-80 | 1.5×2 | 1.5 | 2580×1430×600 | |
GZD300×90 | 3000×900 | 450 | 80-100 | 3×2 | 3.5 | 3050×1580×750 | |
GZD370×100 | 3700×1050 | 500 | 100-150 | 3.7×2 | 4.5 | 3980×1878×866 | |
GZD490×110 | 4900×1100 | 580 | 120-280 | 5.5×2 | 5.8 | 5200×1900×950 | |
GZD500×120 | 5000×1200 | 600 | 200-400 | 5.5×2 | 7 | 5450×2000×1000 | |
ZSW380×96 | 3800×940 | 500 | 100-160 | 500-720 | 18.5 | 5 | 3800×1540×1660 |
ZSW490×110 | 4900×1100 | 580 | 120-280 | 500-800 | 22 | 6 | 4900×1700×1660 |
ZSW590×110 | 5900×1100 | 600 | 200-350 | 500-800 | 30 | 7.2 | 5900×1840×1900 |
ZSW600×130 | 6000×1300 | 600 | 400-560 | 500-800 | 37 | 9 | 5980×2050×1950 |
