Single Girder Gantry Cranes

• Capacity: up to 50t

• Span Length: up to 50m

• Cantilever length: 3m-8m

• Duty Group: A3-A5

• Work Environment      Temperature: -25°C〜+50°C, relative humidity ≤95%

• Applications: Indoor and      outdoor

• Advantage: cover more      work area, no need to build warehouse.

Product Introduction

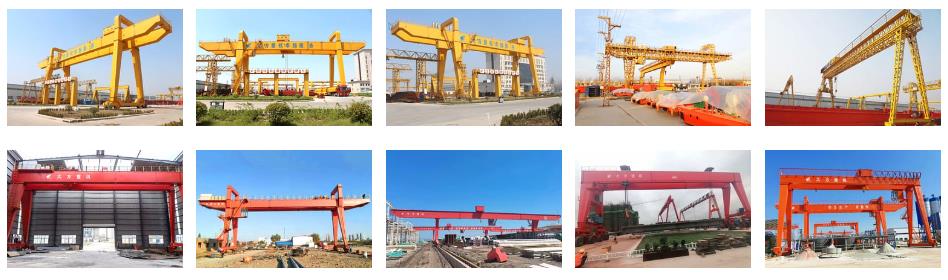

Gantry cranes or Goliath Cranes are very versatile cranes used typically for activities in steel warehouses, precast yards, construction sites, port, train station, power plant and other outdoor applications.

Include single girder gantry crane, double girder gantry crane, semi gantry crane, trussed gantry crane. Suitable for indoor and outdoor usage.

These cranes can be completely customized for SWL, span, lifting height, speeds, control method and class of duty to suit the actual applications.

We provide single girder gantry crane solutions from 1 Ton SWL up to 20 Ton SWL (we also manufacture gantry crane designed according to client special requirement).

According to different situations, single girder gantry crane have three type: L single girder gantry crane, MH single girder gantry crane, truss type single girder gantry crane.

Technical Features

·         Gantry cranes are more quickly and easily installed and disassembled, it is ideal choice for use in a rented factory or in multiple work place

·         Equipped with all the necessary safety device： overload limit switch, travel limit switch, height limit switch, hook safety latch

·         High reliability component: hook, winch, drum, wheel, motor etc

·         Light work duty

·         Needn’t any column, runway beam, just travel on the ground's rail

·         Suit for both of outdoor and indoor
