Truss Gantry Cranes

·         Capacity: up to 200t

·         Span Length: up to 100m

·         Cantilver length: 5m-15m

·         Duty Group: A3-A5

·         Work Environment Temperature: -25°C〜+50°C, relative humidity ≤95%

·         Applications: open yard

·         Advantage: Trussed structure can bear large wind pressure, best choice for open yard.

Product Introduction

Gantry cranes or Goliath Cranes are very versatile cranes used typically for activities in steel warehouse, precast yards, construction sites, port, train station, power plant and other outdoor applications.

Include single girder gantry crane, double girder gantry crane, semi gantry crane, trussed gantry crane. Suitable for indoor and outdoor usage.

These cranes can be completely customized for SWL, span, lifting height, speeds, control method and class of duty to suit the actual applications.

In general, truss gantry crane have three kinds of uses.:

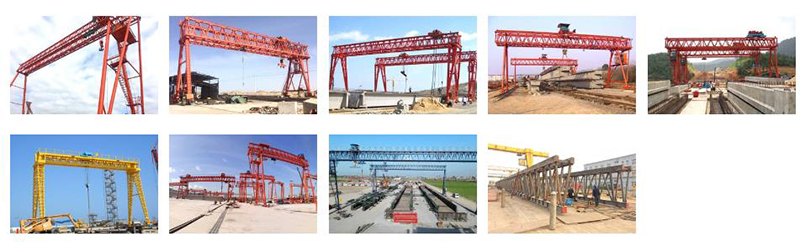

·         First, trussed gantry crane usually used in concrete beam yard, for lift beam girder which is used in bridge build.

·         Second, trussed gantry crane will used near to the bridge approach, for construct bridge approach, after finished, engineer gantry crane also for lift concrete beam from ground transporter to bridge transporter, help launcher crane to build the whole bridge.

·         Third, engineer gantry crane is used for disassemble and re erect launcher crane.

In order to facilitate move the gantry crane from one erect point to next erect point and save cost, usually, we will provide moveable steel box foundation for engineer gantry crane.

Technical Features

·         Gantry cranes are more quickly and easily for installed and disassembled, it is ideal choice for use in a rented factory or in multiple work place

·         Equipped with all the necessary safety device： overload limit switch, travel limit switch, height limit switch, hook safety latch

·         High reliability component: hook, winch, drum, wheel, motor etc

·         High work duty, can bearing heavy capacity and longer span

·         Needn’t any column, runway beam, just travel on the ground's rail

·         Suit for both of outdoor and indoor

·         Trussed structure is best choice for open yard.
